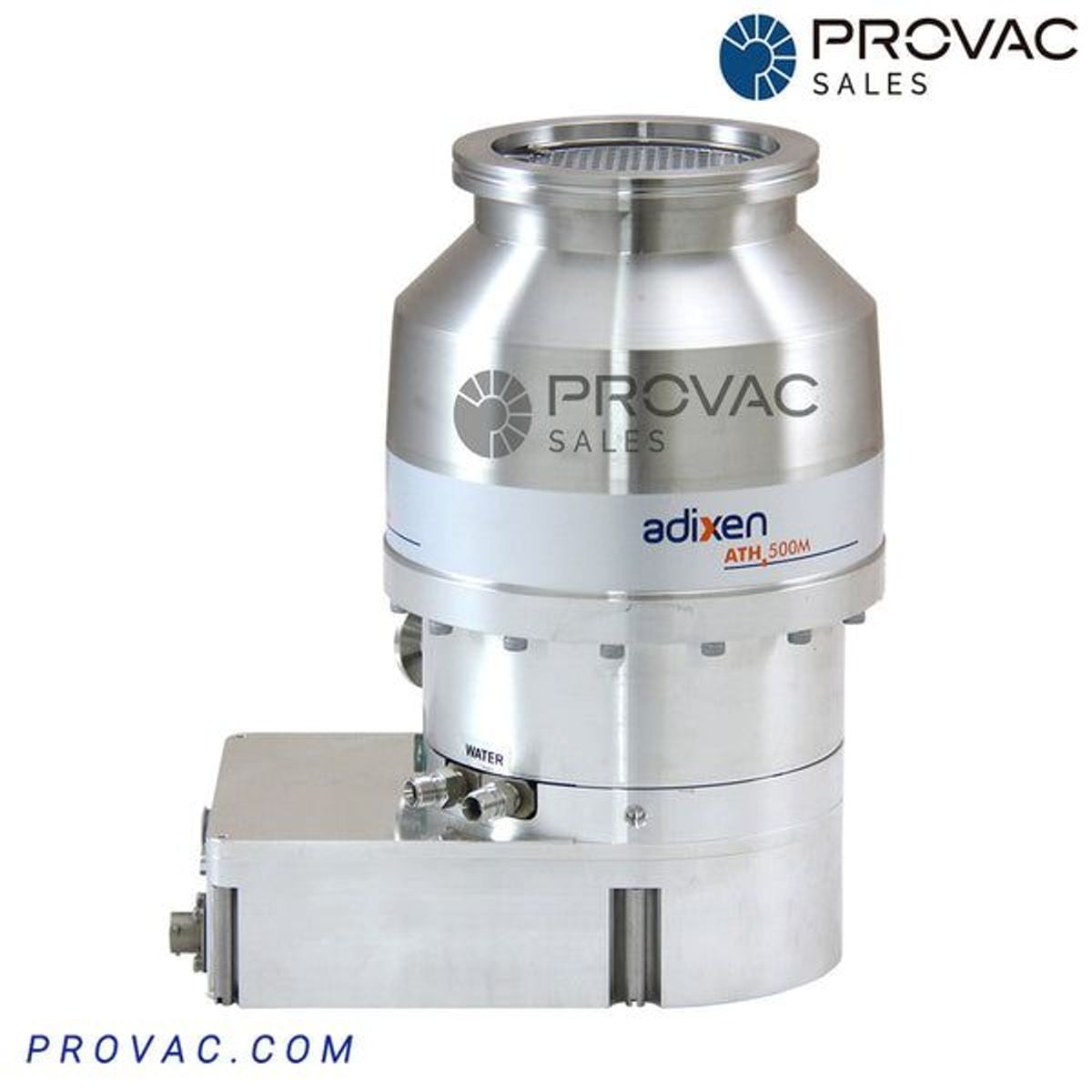

Alcatel ATH-500M Turbo Pump, Rebuilt Image 1

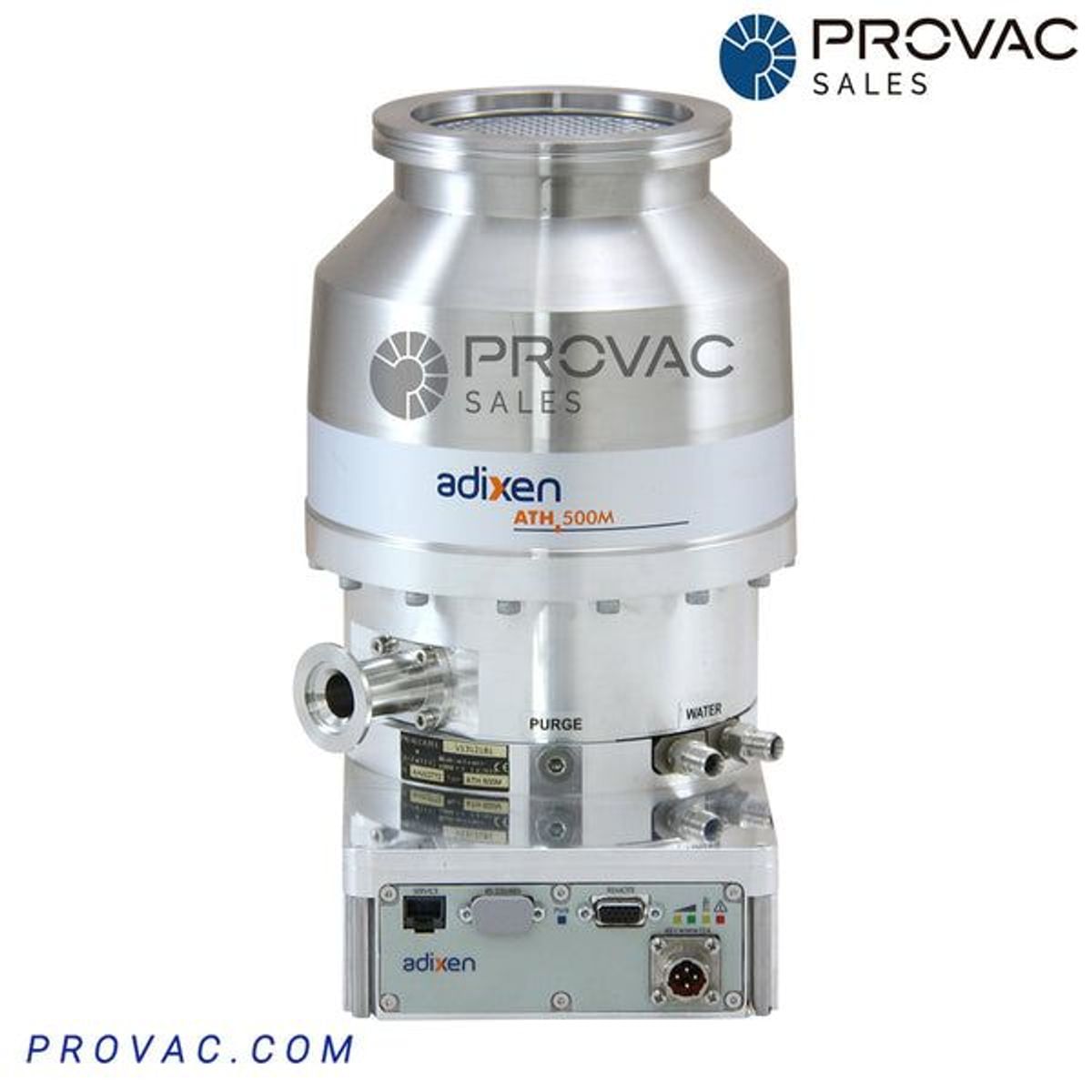

Alcatel ATH-500M Turbo Pump, Rebuilt Image 2

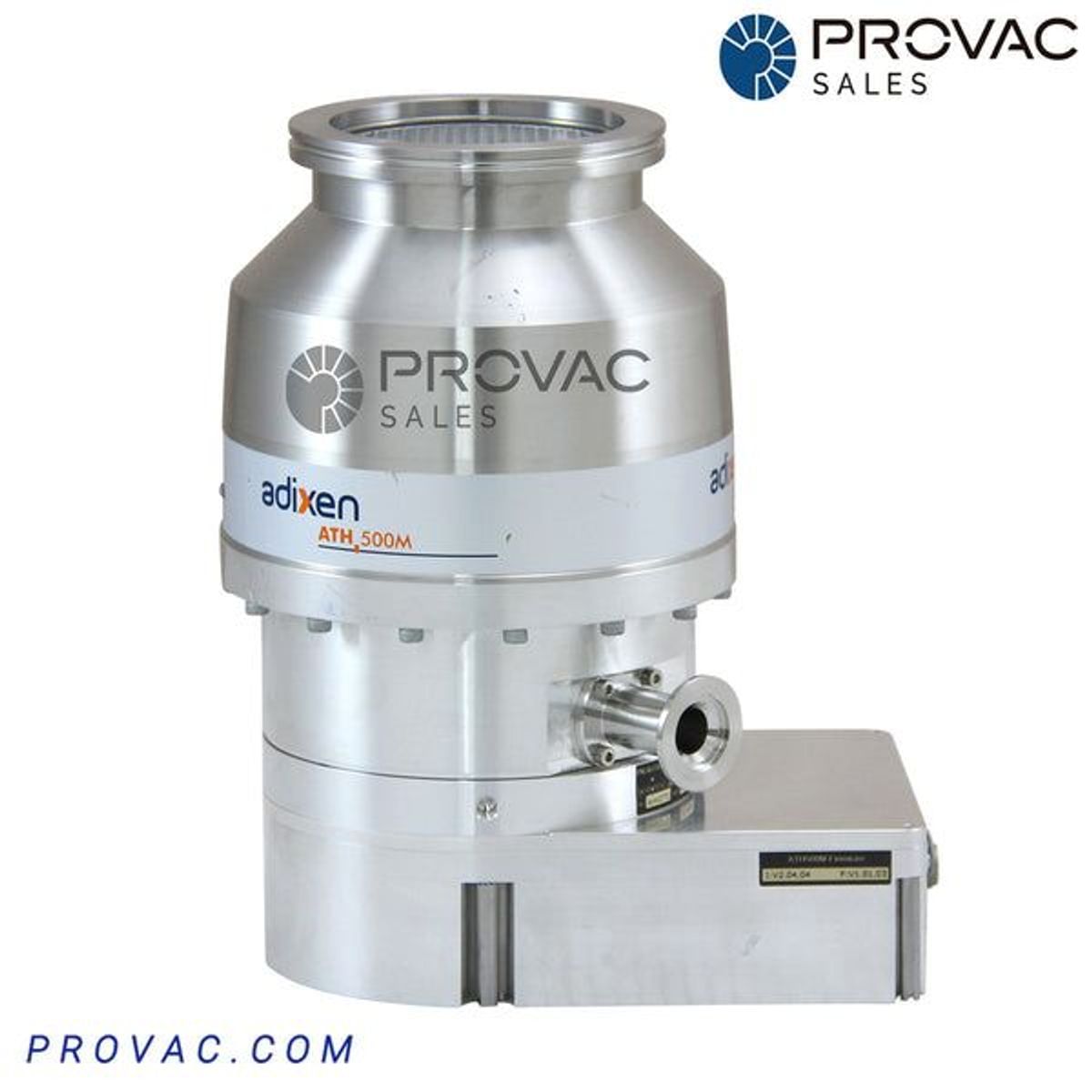

Alcatel ATH-500M Turbo Pump, Rebuilt Image 3
Alcatel ATH-500M Turbo Pump, Rebuilt Image 4

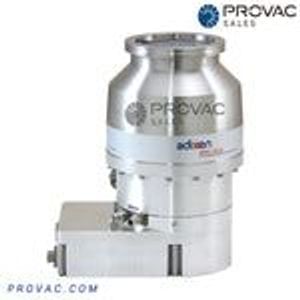

Alcatel ATH-500M Turbo Pump, Rebuilt Small Image 1
Alcatel ATH-500M Turbo Pump, Rebuilt Small Image 2
Alcatel ATH-500M Turbo Pump, Rebuilt Small Image 3
Alcatel ATH-500M Turbo Pump, Rebuilt Small Image 4

Alcatel ATH-500M Turbo Pump, Rebuilt

$ 14,111.00

  • Type of Product: Turbo Pump
  • Manufacturer: Alcatel
  • Condition: Rebuilt
  • Price: $14,111.00
  • Part Number: V13121B1
  • Inlet: ISO100
  • Exhaust: KF25
  • Pumping speed: 300 l/s (N2)
  • Compression ratio: 2 x 10^7 (N2)
  • Ultimate pressure: 7.5 x 10-9 Torr
  • Weight: 37 lbs
  • *Additional Configurations Available Upon Request
QUANTITY
Share

Technical Specs

Recommended backing pump ACP-40
Applications surface analyzers • leak detectors • biotechnology • residual gas analysis • bonding • medical technologies • isolation vacuums • heat treatment • nanotechnology • semiconductor • coating • research & development
